| Model | Diaphragm Wall Width | Grab Body Width | Jaw Capacity | Grab Weight |
| SHG2506ST | 600 mm | 500 mm | 540 L | 10 ton |
| SHG2508ST | 800 mm | 500 mm | 770 L | 11 ton |
| SHG2510ST | 1000 mm | 500 mm | 1000 L | 12.4 ton |
All posts by hmccadmin

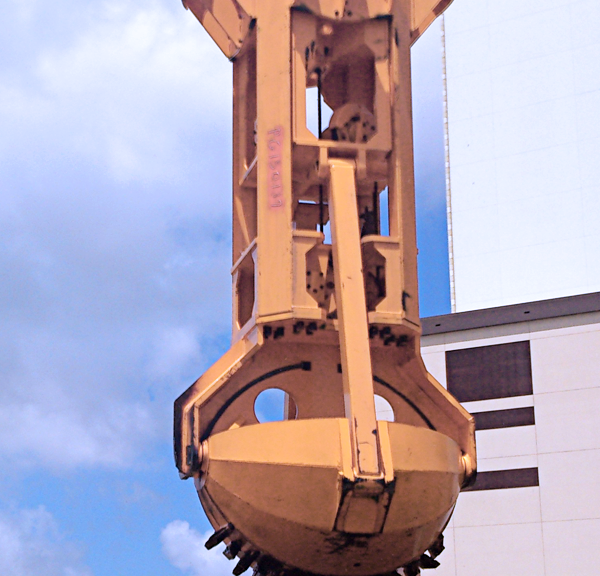

SAMBO Spherical-Typed Hammer Grab
| Model | Casing Diameter (mm) | L (mm) | L1 (mm) | L2 (mm) | B (mm) | B1 (mm) | B2 (mm) | S (mm) | Jaw Capacity (L) | Grab Weight (ton) |
| SLKG-200 | OD2000 / ID1880 | 4,600 | 5700 | 6100 | 1500 | 1770 | 1650 | 1810 | 970 | 15 |
| SLKG-250 | OD2500 / ID2380 | 4,600 | 6000 | 6615 | 1500 | 2290 | 2200 | 2310 | 2250 | 20 |
| SLKG-300 | OD3000 / ID2840 | 4600 | 6215 | 7000 | 1500 | 2760 | 2660 | 2710 | 3900 | 22 |
SAMBO Heavy Duty Hammer Grab
| Model | Casing Diameter | Excavation Diameter [B] | Grab Length [A] | Jaw Capacity | Grab Weight |
| SMG25HGHD | OD2500 / ID2400 mm | 2170 mm | 6040 mm | 2500 L | 17 ton |
| SMG28HGHD | OD2800 / ID2680 mm | 2370 mm | 6125 mm | 3500 L | 18 ton |
| SMG30HGHD | OD3000 / ID2840 mm | 2570 mm | 6210 mm | 4500 L | 19 ton |

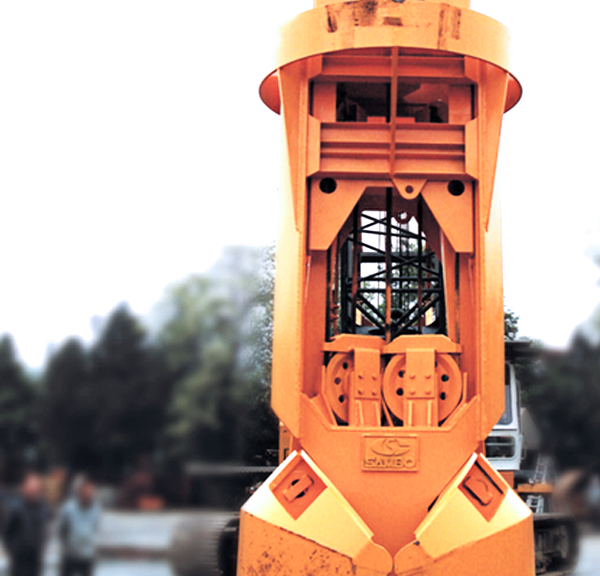

SAMBO Standard Hammer Grab
| Model | Casing Diameter | Excavation Diameter [B] | Length of Grab [A] | Jaw Capacity | Grab Weight | Grab Type |
| SMG10ST | OD1000/ID920 mm | 890 mm | 3750 mm | 210 L | 2.5 ton | Standard |
| SMG12ST | OD1200 / 1120 mm | 1070 mm | 3980 mm | 430 L | 3.5 ton | Standard |
| SMG15ST | 1500 / 1400 mm | 1360 mm | 4250 mm | 850 L | 4.5 ton | Standard |
| SMG18HD | 1800 / 1700 mm | 1650 mm | 5630 mm | 1100 L | 9 ton | Heavy Duty |
| SMG20HD | 2000 / 1880 mm | 1800 mm | 5680 mm | 1200 L | 9.6 ton | Heavy Duty |
| SMG25HD | 2500 / 2380 mm | 2500 mm | 5880 mm | 1800 L | 10.5 ton | Heavy Duty |

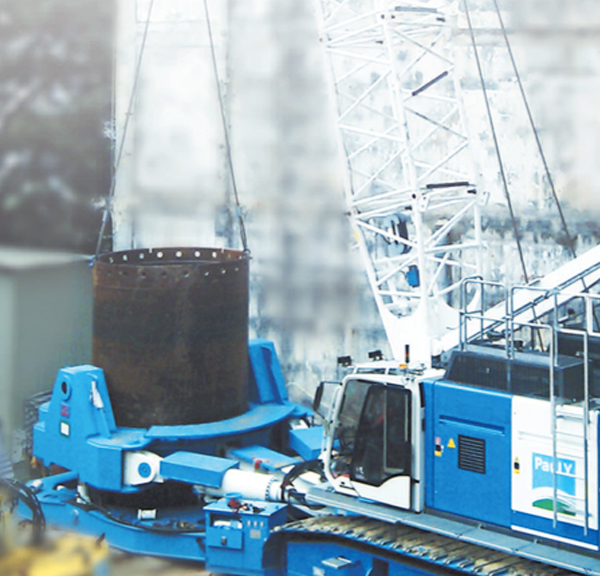

SAMBO Casing Oscillators
| Model | Unit | SCO150 | SCO200 | SCO250 | SCO300 | SCO330 | |
| Lifting Stroke | mm | 600 | 600 | 650 | 650 | 650 | |
| Lifting Force | kN | 2050 | 2750 | 5150 | 7250 | 9100 | |
| Clamping Force | kN | 1660 | 2250 | 3780 | 4780 | 5450 | |
| Rotation Angle | Deg | 25 | 24 | 25 | 21 | 24 | |
| Oscillating Torque | kNm | 2900 | 4265 | 7100 | 11000 | 13350 | |
| Weight | ton | 19 | 28 | 42 | 57 | 65 | |
| Hydraulic Power Pack | Model | SPP260 | SPP360 | SPP600 | |||
| Engine Output | HP | 260 | 360 | 600 | |||
| Max. Oil Flow of Hydraulic Pumps | L/min | 2*201 | 3*200 | 2*324+252 | |||
| Max. Pressure | bar | 300 | 320 | 320 | |||
| Oil Tank | Liter | 1200 | 1600 | 1600 | |||
| Fuel Tank | Liter | 510 | 900 | 900 | |||
| Unit Weight | kg | 7000 | 9500 | 10000 | |||

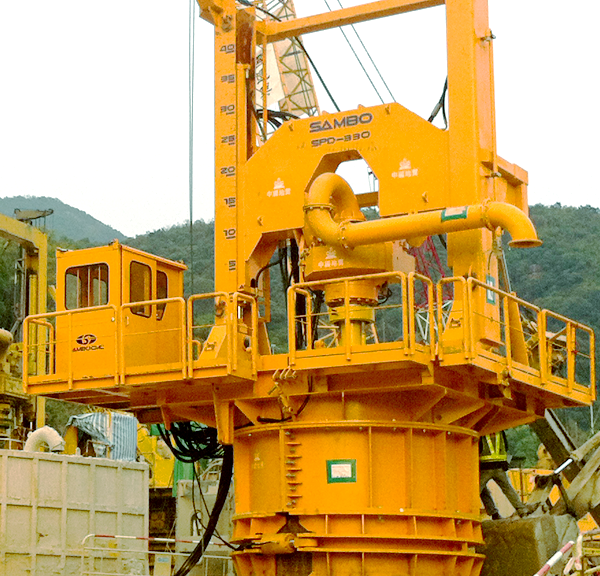

SAMBO Reverse Circulation Drills (RCD)
| Model | SPD150 | SPD200 | SPD250 | SPD300 | SPD330 | SPD400 | SPD500 | SPD750 | |||
| Max. Drilling Diameter | m | 1500 | 2000 | 2000 | 2500 | 3000 | 3300 | 4000 | 5000 | 7500 | |
| Max. Power Swivel Torque | kNm | 160 | 160 | 200 | 240 | 350 | 360 | 650 | 800 | 1200 | |
| Max. Drilling Speed | rpm | 11-41 | 11-41 | 9-23 | 11-40 | 9-20 | 10-23 | 8-20 | 6-20 | 3.2 | |
| Max. Thrust Dorce | Up | kN | 990 | 1110 | 1110 | 1400 | 1840 | 1840 | 2700 | 3600 | 4240 |
| Down | kN | 600 | 680 | 680 | 820 | 1130 | 1130 | 1500 | 2000 | 2350 | |
| Stroke of Thrust Cylinders | mm | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3600 | 3600 | 4100 | |
| Max. Passage of Retaining Device | mm | 1530 | 2020 | 2020 | 2530 | 3030 | 3330 | 4050 | 5050 | 5500 | |
| Max. Vertical Load to Retaining Device | kN | 800 | 1000 | 1000 | 1000 | 1000 | 1200 | 1500 | 1500 | 3000 | |
| Passage for Drill Rod Pipe | mm | 450 | 600 | 600 | 600 | 600 | 600 | 700 | 700 | 1650 | |
| Nominal Size of Drill Rod Pipe | NW | 200 | 200/300 | 200/300 | 300 | 300 | 300 | 350 | 350 | 1200 | |
| Line Pull of Aux. Jib Winch | kN | 10 | 10 | 10 | 10 | 10 | 10 | 20 | 20 | 30 | |
| Unit Weight of Drilling Rig | Ton | 15 | 21 | 21 | 31 | 36 | 39 | 50 | 70 | 145 | |
| Unit Weight of Casing Adaptor And Clamp | Ton | 3.5 | 4.2 | 4.2 | 5.1 | 8.1 | 9 | 15 | 25 | 30 | |
| Hydraulic Power Pack | Model | SPP260 | SPP535 | SPP600 | SPP750 | SPP875 | |||||
| Engine Output | HP | 260 | 535 | 600 | 750 | 875 | |||||
| Max. Oil Flow of Hyd. Pump | L/min | 2*201 | 3*252 | 2*324+252 | 3*324+252 | 3*324+252 | |||||
| Max. Pressure | bar | 300 | 320 | 320 | 320 | 320 | |||||
| Oil Tank | Liter | 1200 | 1600 | 1600 | 1900 | 1900 | |||||
| Fuel Tank | Liter | 510 | 900 | 900 | 1100 | 1100 | |||||
| Unit Weight | kg | 7000 | 10000 | 10000 | 15000 | 17000 | |||||
JINTAI SH36 Hydraulic Rotary Drilling Rig
Rotary
| Torque | 360 kNm | 265,522 ft. lbs |
| Crowd Cylinder Push – Pull Force | 300 – 300 kN | 67,443 – 67,443 lbf |
| Crowd Cylinder Stroke | 6,000 mm | 20 ft |
| Crowd Winch Push – Pull Force | 300 – 300 kN | 67,443 – 67,443 lbf |
| Crowd Winch Stroke | 10,000 mm | 33 ft |
| Maximum Speed of Rotation | 30 rpm | 30 rpm |
Winch System
| Main Winch – Line Pull | 300 kN | 67,443 lbf |
| Main Winch – Rope Diameter | 36 mm | 1.42 in |
| Auxiliary Winch – Line Pull | 75 kN | 16,861 lbf |
| Auxiliary Winch – Rope Diameter | 18 mm | 0.71 in |
Engine
| Brand | CUMMINS | |
| Model | QSM11-C | |
| Engine Output | 300 kW @ 1,900 rpm | 402 hp @ 1,900 rpm |
Hydraulic System
| Hydraulic Pressure | 330 bar | 4786 psi |
Expandable Crawlers
| Length | 6,020 mm | 20 ft |
| Width | 3,450/4,600 mm | 10.49/14.10 ft |
| Shoe Width | 800 mm | 2.625 ft |
Weight & Height
| Mast Height | 23.5 | 77 ft |
| Self Weight (Without drilling tools) | 86.2 ton | 190,038 lbs |
| Operating Weight | 103.2 ton | 227,517 lbs |
JINTAI SH30 Hydraulic Rotary Drilling Rig
Rotary
| Torque | 286 kNm | 210,943 ft. lbs |
| Crowd Cylinder Push – Pull Force | 250 -250 kN | 56,202 – 56,202 lbf |
| Crowd Cylinder Stroke | 5,700 mm | 19 ft |
| Crowd Winch Push – Pull Force | 250 – 250 kN | 56,202 – 56,202 lbf |
| Crowd Winch Stroke | 10,000 mm | 33 ft |
| Maximum Speed of Rotation | 30 rpm | 30 rpm |
Winch System
| Main Winch – Line Pull | 250 kN | 56,202 lbf |
| Main Winch – Rope Diameter | 30 mm | 1.18 in |
| Auxiliary Winch – Line Pull | 75 kN | 16,861 lbf |
| Auxiliary Winch – Rope Diameter | 18 mm | 0.71 in |
Engine
| Brand | CUMMINS | |
| Model | QSM11-C | |
| Engine Output | 263 kW @ 1,900 rpm | 353 hp @ 1,900 rpm |
Hydraulic System
| Hydraulic Pressure | 330 bar | 4786 psi |
Expandable Crawlers
| Length | 5,680 mm | 19 ft |
| Width | 3,300/4,400 mm | 10.49/14.10 ft |
| Shoe Width | 800 mm | 2.625 ft |
Weight & Height
| Mast Height | 23.5 m | 77 ft |
| Self Weight (Without drilling tools) | 76 ton | 167,551 lbs |
| Operating Weight | 91 ton | 200,621 lbs |
JINTAI SH25C Hydraulic Rotary Drilling Rig
Rotary
| Torque | 250 kNm | 184,391 ft. lbs |
| Crowd Cylinder Push – Pull Force | 250 – 250 kN | 56,202 – 56,202 lbf |
| Crowd Cylinder Stroke | 5,700 mm | 19 ft |
| Crowd Winch Push – Pull Force | 250 – 250 kN | 56,202 – 56,202 lbf |
| Crowd Winch Stroke | 10,000 mm | 33 ft |
| Maximum Speed of Rotation | 30 rpm | 30 rpm |
Winch System
| Main Winch – Line Pull | 220 kN | 56,202 lbf |
| Main Winch – Rope Diameter | 28 mm | 1.10 in |
| Auxiliary Winch – Line Pull | 75 kN | 16,861 lbf |
| Auxiliary Winch – Rope Diameter | 18 mm | 0.71 in |
Engine
| Brand | CUMMINS | |
| Model | QSL-9 | |
| Engine Output | 221 kW @ 1,850 rpm | 296 hp @ 1,850 rpm |
Hydraulic System
| Hydraulic Pressure | 330 bar | 4786 psi |
Expandable Crawlers
| Length | 5535 mm | 18 ft |
| Width | 3,200/4,300 mm | 10.49/14.10 ft |
| Shoe Width | 800 mm | 2.625 ft |
Weight & Height
| Mast Height | 23.5 m | 77 ft |
| Self Weight (Without drilling tools) | 65.9 ton | 145,285 lbs |
| Operating Weight | 78.9 ton | 173,945 lbs |
JINTAI SH15 Hydraulic Rotary Drilling Rig
Rotary
| Torque | 150 kNm | 110,634 ft. lbs |
| Crowd Cylinder Push – Pull Force | 160 -160 kN | 35,969 – 35,969 lbf |
| Crowd Cylinder Stroke | 4000 mm | 13 ft |
| Crowd Winch Push – Pull Force | 200 – 200 kN | 44,962 – 44,962 lbf |
| Crowd Winch Stroke | 10000 mm | 33 ft |
| Maximum Speed of Rotation | 30 rpm | 30 rpm |
Winch System
| Main Winch – Line Pull | 140 kN | 31473 lbf |
| Main Winch – Rope Diameter | 23 mm | 0.91 in |
| Auxiliary Winch – Line Pull | 50 kN | 11240 lbf |
| Auxiliary Winch – Rope Diameter | 18 mm | 0.71 in |
Engine
| Brand | CUMMINS | |
| Model | 6BTAA5.9-C | |
| Engine Output | 133 kW @ 2,000 rpm | 178 hp @ 2,000 rpm |
Hydraulic System
| Hydraulic Pressure | 330 bar | 4,786 psi |
Expandable Crawlers
| Length | 5090 mm | 17 ft |
| Width | 3,150/4,300 mm | 10.33/14.10 ft |
| Shoe Width | 700 mm | 2.3 ft |
Weight & Height
| Mast Height | 20.1 m | 66 ft |
| Self Weight (Without drilling tools) | 45.5 ton | 100,310 lbs |
| Operating Weight | 55 ton | 121,254 lbs |
